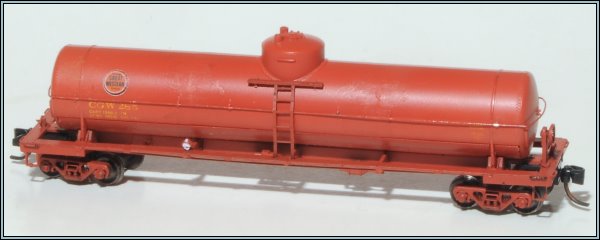

48-foot single dome rivited tankcar, Chicago Great Western
(CGW 285).
I was pleased when Micro-Trains released this paint scheme on their 39' tankcar back
in 1990, and that gave me the inspiration to make a more-accurate model of this
prototype. I started with two Micro-Trains tankcars decorated in the red CGW
scheme, and disassembled them. I cut the center section from one 35' body and
the ends from the second body in a way to form a 45' body and preserve the existing
graphics. I covered the graphics on the pieces with low-tact tape, squared off
the saw cuts with a file, glued the three pieces together, and sanded any imperfections
smooth. Next, I cut three sections from the two frames and formed the stretched
frame, securing the pieces with C.A. cement and enforcing it with 10-mill steel wire.
The vertical brakewheel was replaced with a more modern Ajax wheel stand taken from a
Micro-Trains caboose end rail. New handrails were formed from 10-mil steel wire.
The standard Bettendorfs were replaced with roller bearing trucks with low-flange
wheels and body mounted couplers. After testing the fit of all parts, the car was
prepared for painting. Accu-Paint was mixed to match the existing red paint in
two batches. The batch with extra thinner was used to feather the sanded sections
of the tank into the existing paint. The second batch had a flex agent added, and
was used to paint the frame, ladders, handrails and truck sideframes. All visable
faces of the wheelsets were hand-painted a dark rust. The car was assembled, then
lightly airbrushed with a red wash, then a dust-colored wash, to blend everything in,
and to tone down the graphics.
